Made in the U.S.A.

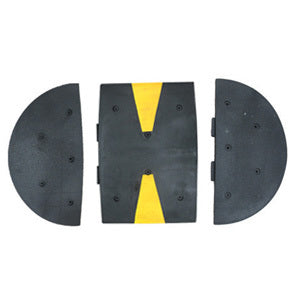

Center Sections Dimensions: 24"L x 36"W x 2.4"H, connected length 23.5"
6 installation holes
Weight: 52 lbs.
End caps Dimensions: 17.5"L x 36"W x 2.4"H, 5 installation holes
Weight: 23 lbs.
Part Number: SH36
Asphalt Installation:
14" x 1/2" rebar spike and 5/8" washer
Use 6 ea. part XASPHALT per section
Use 5 ea. part XASPHALT per end cap
Concrete Installation:
4 1/2" lag bolt, 2" lag shield, 1/2" washer
Use 6 ea. part XCONCRETE per section
Use 5 ea. part XCONCRETE per end cap
